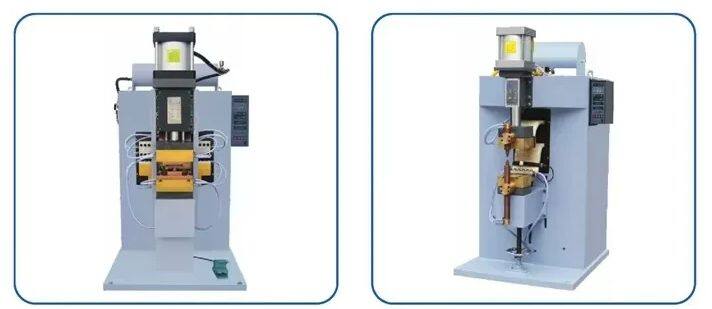

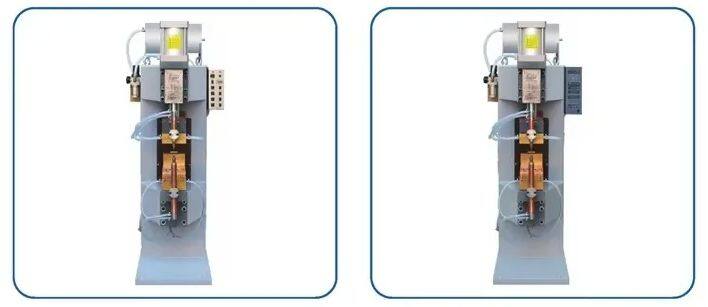

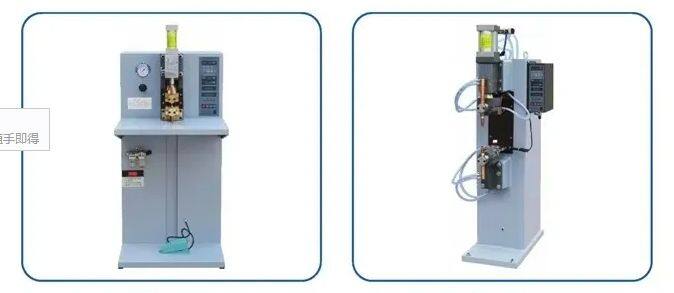

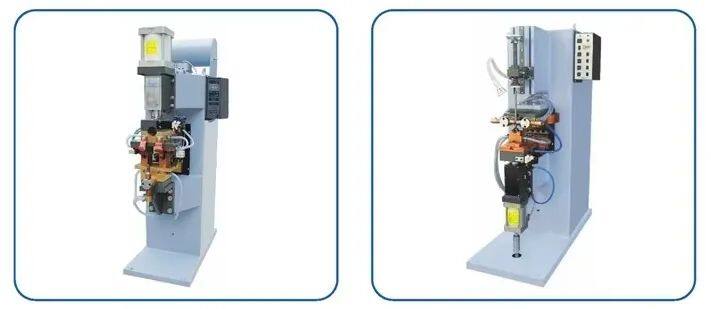

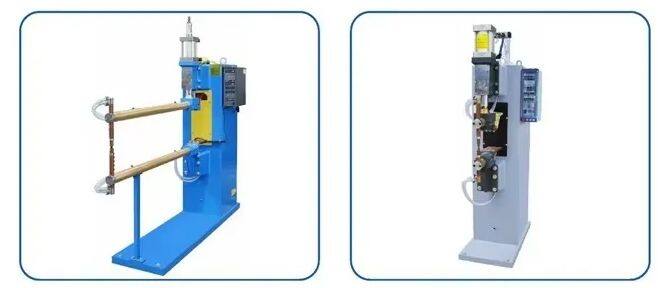

AC Welding Machine Spot Welding for Aluminum, Copper, Brass, Stainless Steel Welder Industrial Power
AC Welding Machine Spot Welding for Aluminum, Copper, Brass, Stainless Steel Welder Industrial Powerful Welding Machine
Basic Info.
Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.
Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.
2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3. Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.
4. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.
5. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;
6. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; adopt the quick exhaust cylinder, quick response, good servo performance.
7. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.
Model | Input Voltage | Related Capacity | Max Short Circuit Current | Duty Cycle Rate | Electrode Force | Electrode Stroke | Cooling Water |
V | KVA | KA | % | KG | mm | L/min | |
TS-S-5K | 220 | 5 | 1 | 25 | 30 | 25 | 4 |
TS-S-10K | 380 1PH | 10 | 2.5 | 25 | 100 | 50 | 4 |
TS-S-16K | 380 1PH | 16 | 4.5 | 25 | 100 | 50 | 6 |
TS-SP-25K | 380 1PH | 25 | 7 | 25 | 350 | 80 | 6 |
TS-SP-35K | 380 1PH | 30 | 9 | 25 | 350 | 80 | 6 |
TS-SP-50K | 380 1PH | 50 | 13 | 25 | 800 | 100 | 6 |
TS-SP-75K | 380 1PH | 75 | 18 | 25 | 1000 | 100 | 8 |
TS-SP-100K | 380 1PH | 100 | 20 | 25 | 1000 | 10 | 8 |
TS-SP-150K | 380 1PH | 150 | 25 | 25 | 1000 | 8100 | 10 |
TS-SP-200K | 380 1PH | 200 | 30 | 25 | 1500 | 100 | 10 |
TS-SP-250K | 380 1PH | 150 | 38 | 25 | 1500 | 100 | 12 |
TS-SP-300K | 380 1PH | 300 | 45 | 25 | 2000 | 100 | 16 |
PROFESSIONAL SPOT WELDING EQUIPMENT MANUFACTURER
100
Tens of years for our customers tailored solutions, the cumulative delivery of high-quality products are 100 sets.
56
It has 56 models supermarket trolley, storage cage, racks entireproduction equipment and various types of high-quality
LD
5
Companyinnovation,research and development on average fivesets of efficient and economical year, and every year.
1
From pre-sales consulting to desiqn and development, sampletesting,production,timely delivery,installation and commis.sioning,and after-sales seryice.
20%
Maintained an average annual growth rate of 23% of themarket,accounting forindustry leadership position.
18
High quality welding equipment 18 years of industry experience.
7
Company Profile 7 experienced professional team, every aspectof strict, active and efficient customer seryice in the market.
12,300
An area of 12 300 square meters, has a sound business andproduction management system.
2016
Undertake the mission, we are still on the road .
2015
And well-known domestic listed companies to develop a successful rib automatic intelligent Chi-made production systems officially to intelligent production systems across qualitative step.
2014
The company successfully passed the China Compulsory Certification electrical CCC certification.
2013
The country's first multi-purpose commercial equipment automatic CNC wire bending machine design andproduction success.
2012
With independent intellectual propertygantry stiffener point trigger a success-ful trial.
2011
Companies new plant put into use,theoutput value exceeded ten million RMB.
2010

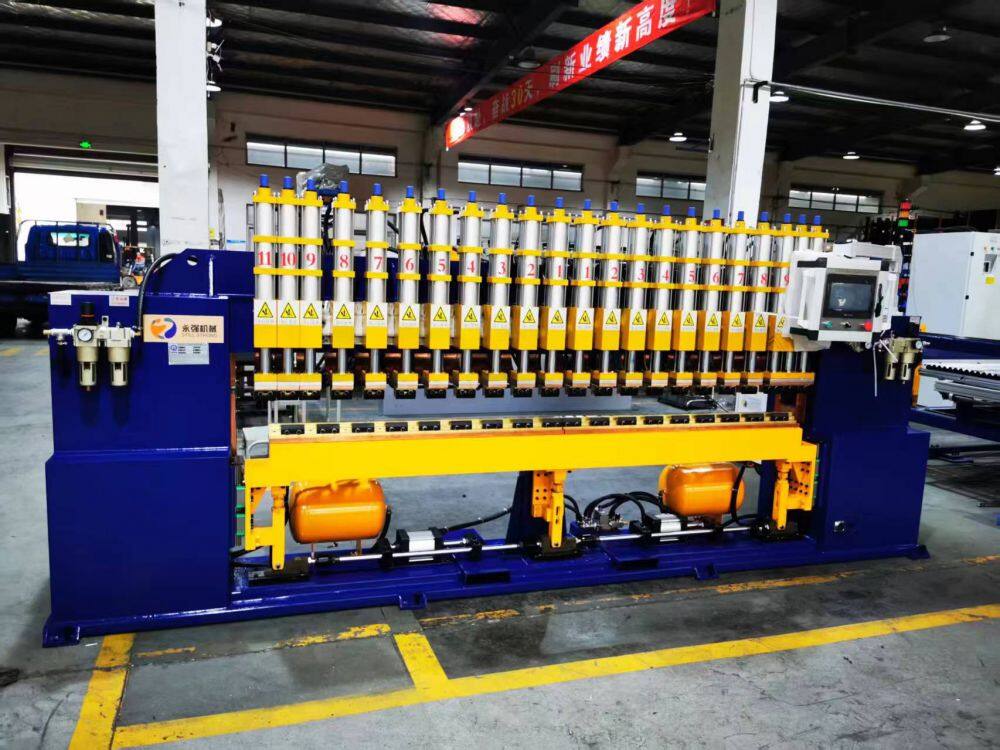

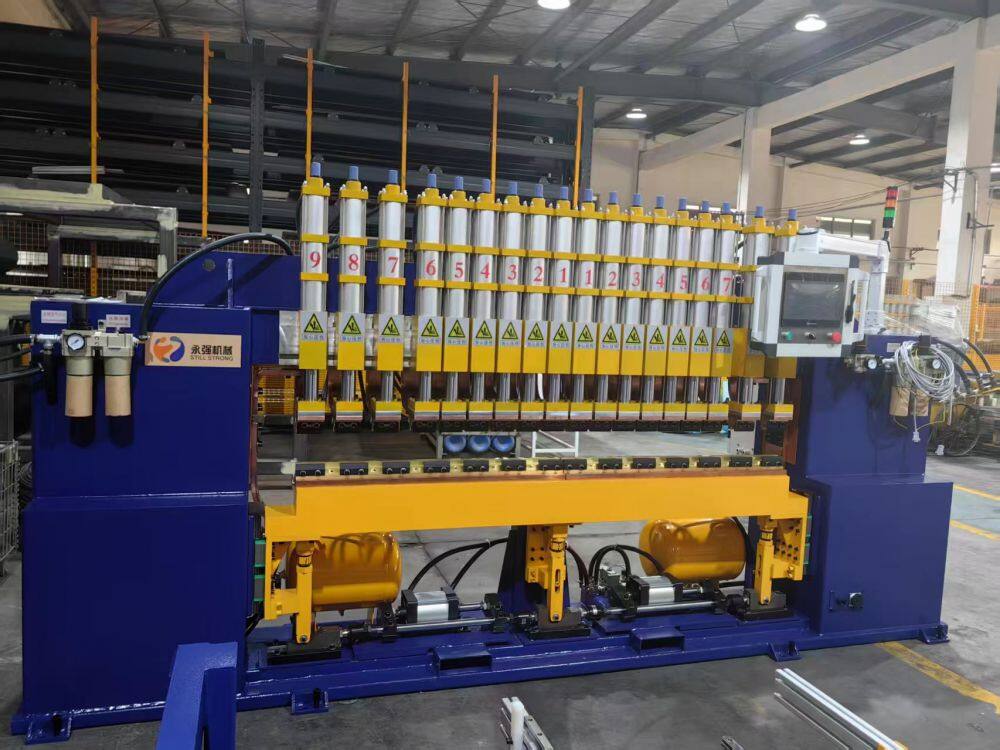

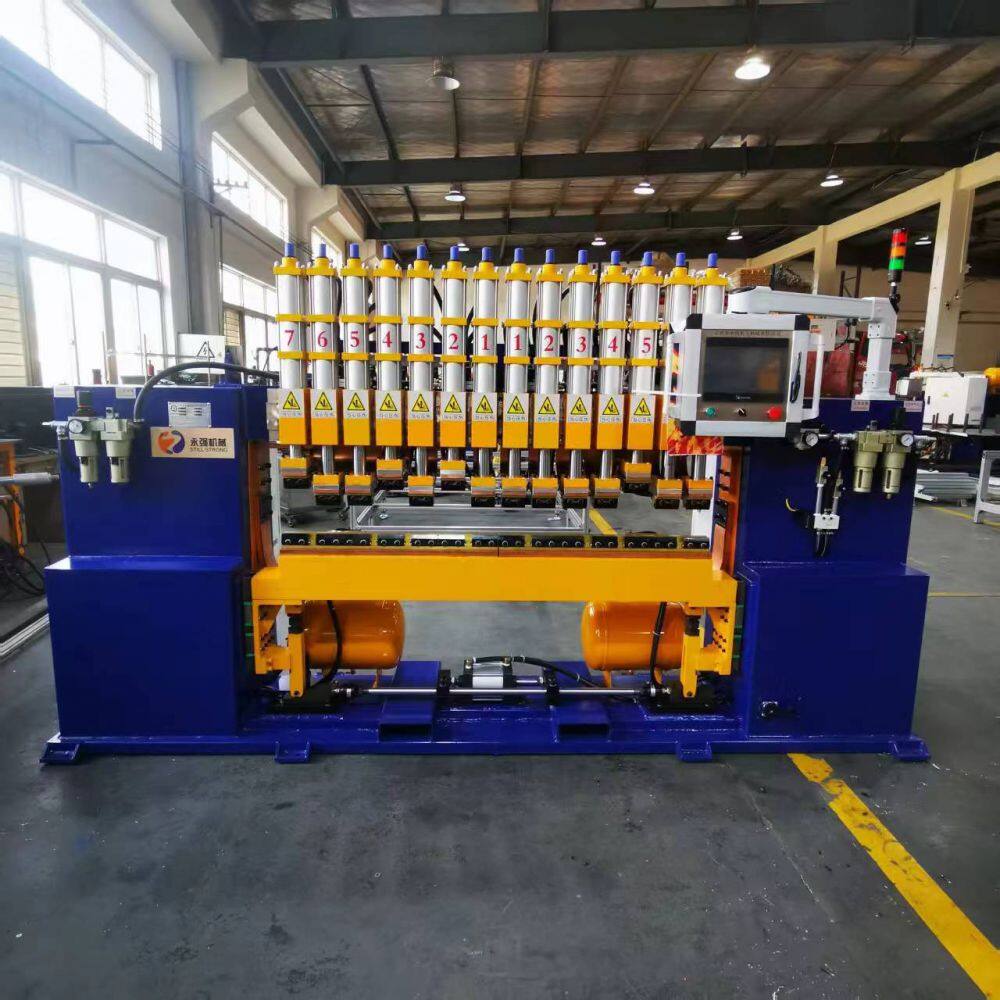

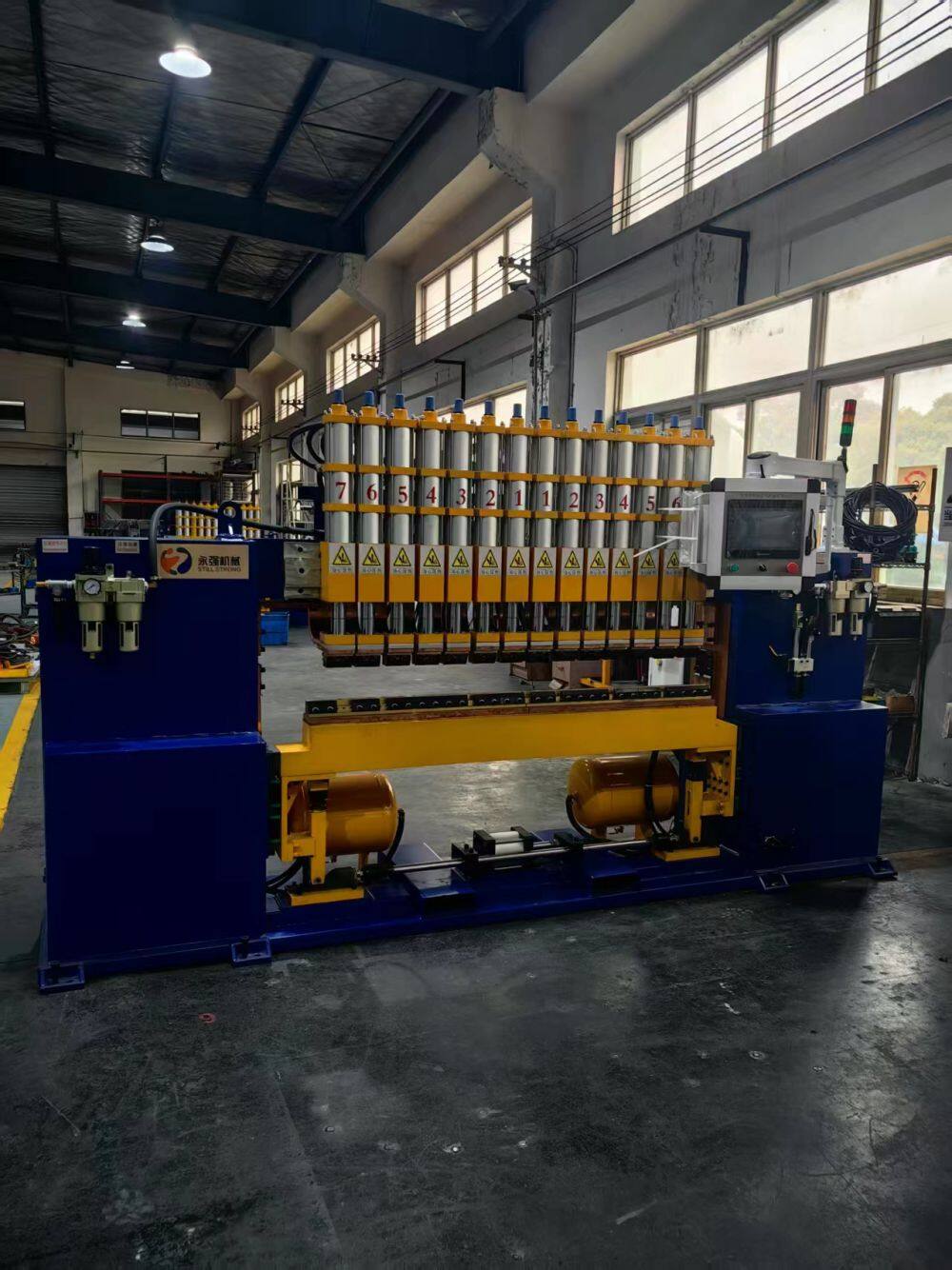

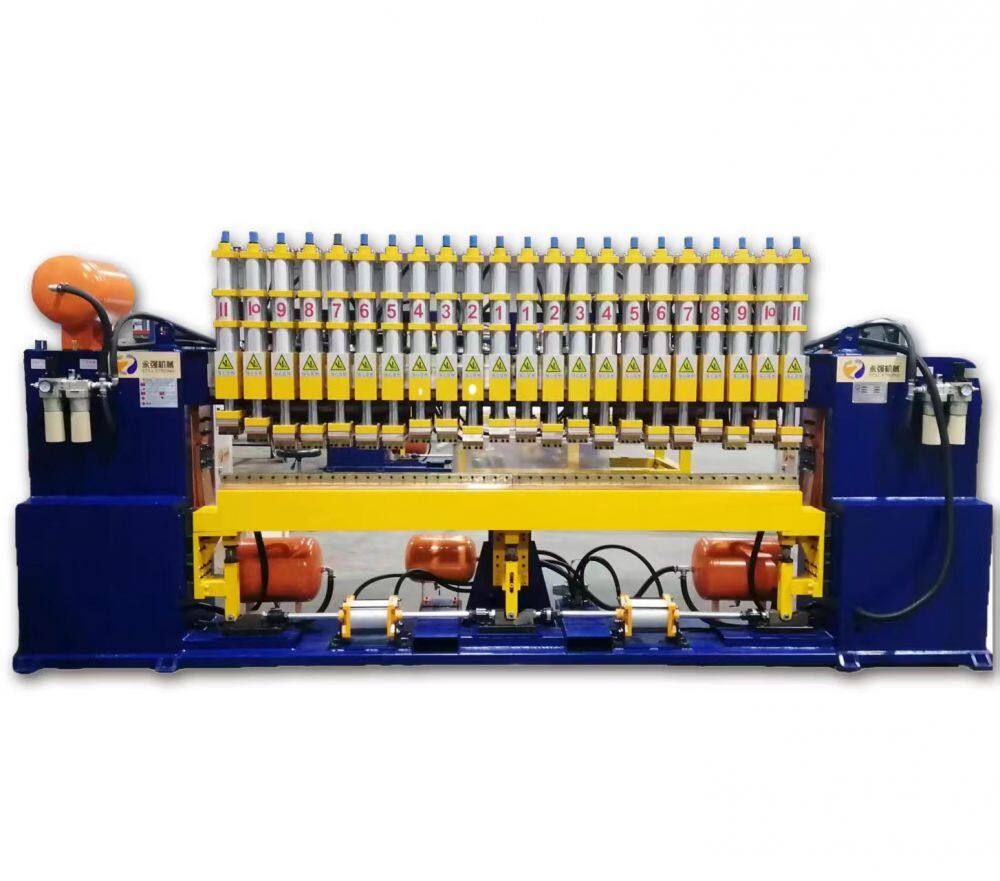

The company's first fully automatic wiremesh welding machine gantry R& DsuCCess.
